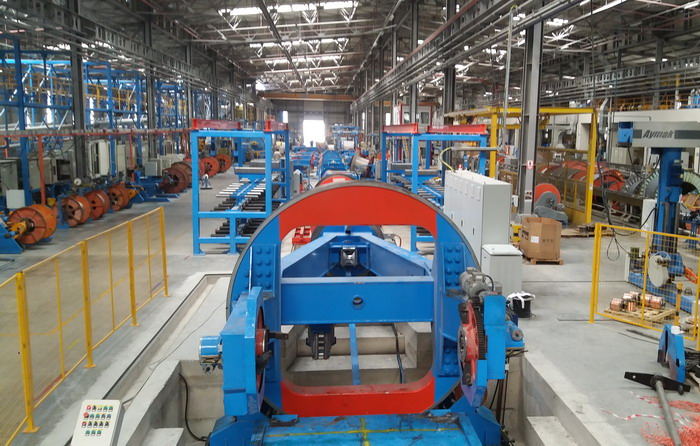

Drum Twister Type Laying Up Machine With Steel Wire Armoring
2024/3/11
Drum Twister Type Laying Up Machine With Steel Wire Armoring
1. Application
The machine is used for strand and lay-up large section, longer round, straight sector and pre-spiral sector power cables. It can strand and lay-up the pre-spiral and non-pre-spiral cable core..
2. Type
Pay-off stand
Φ1000, Φ1250, Φ1600, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500
Take-up stand
Φ1600, Φ1800, Φ2000, Φ2200, Φ2500, Φ2800, Φ3000, Φ3150, Φ3500, Φ4000, Φ4200
Steel-wire pay-off stand
Φ500, Φ630
3. Main Technical Specification
|
Model |
JPD-2500 |
JPD-3150 |
JPD-3600 |
|
|
Max. laying-up OD |
Φ20 –Φ120 |
Φ25 –Φ130 |
Φ25 –Φ130 |
|
|
Max. rotating speed of rum twister and pay-off stand |
50 |
30 |
30 |
|
|
Laying-up pitch |
Step-less, adjustable |
Step-less, adjustable |
Step-less, adjustable |
|
|
Max. linear speed |
50 |
40 |
40 |
|
|
Max. haul-off force |
Standard |
3000 |
3000 |
3000 |
|
With 96pcs steel wire armoring |
5000 |
6000 |
6000 |
|
|
Non-metallic taping device |
Max. speed |
500 |
500 |
500 |
|
Taping pitch |
Step-less, adjustable |
Step-less, adjustable |
Step-less, adjustable |
|
|
Tape reel |
Φ600 xΦ80 |
Φ600 xΦ80 |
Φ600 xΦ80 |
|
|
Tape width |
15 - 80 |
15 – 80 |
15 - 80 |
|
|
Metallic taping device |
Max. speed |
300 |
300 |
300 |
|
Taping pitch |
Step-less, adjustable |
Step-less, adjustable |
Step-less, adjustable |
|
|
Tape reel |
Φ800 xΦ200 |
Φ800 xΦ200 |
Φ800 xΦ200 |
|
|
Steel tape width |
15 - 60 |
15 - 60 |
15 - 60 |
|
|
Central pay-off stand |
PN2500 |
PN3150 |
PN3600 |
|
|
Pay-off stand |
PN1600 |
PN2000 |
PN2500 |
|
|
Take-up drum head size |
PN2500 |
PN3150 |
PN3600 |
|
|
Steel wire armoring specification |
PND500 |
PND630 |
PND630 |
|
|
Main motor power |
45 |
55 |
75 |
|
|
Central payoff stand motor power |
22 |
45 |
55 |
|
|
Pay-off stand motor power |
15 |
15 |
18.5 |
|
|
Traversing stand motor power |
2.2 |
2.2 |
2.2 |
|
|
Take-up stand motor power |
5.5 (2units) |
5.5 (2units) |
7.5 (2units) |
|
|
Central height |
1000 |
1000 |
1000 |
|
