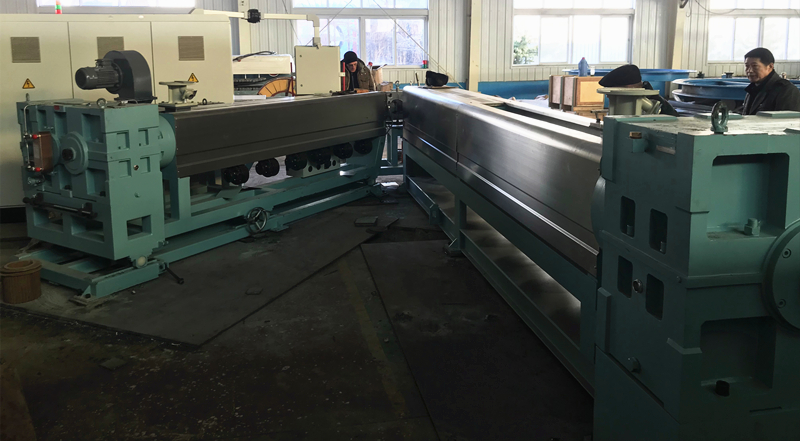

Cable Insulation and Sheathing Extrusion Line
1. Application
The machine is used for extruding PVC, XLPE and LSHF etc for power cable insulation and sheathing layer.
2. Main Technical Date
|
Type |
45 x 25 |
65 x 25 |
90 x 25 |
120 x 25 |
150 x 25 |
|
Dia. of screw (mm) |
45 |
65 |
90 |
120 |
150 |
|
L/D ratio |
25 |
25 |
25 |
25 |
25 |
|
Screw rotating speed (m/min) |
10~120 |
20~110 |
10~100 |
10~80 |
10~60 |
|
Max. torque (Nm) |
1300 |
3000 |
7163 |
13130 |
25467 |
|
Driving power (kw) |
11 |
30 |
55 |
110 |
160 |
|
No. heating/cooling zones |
3/2 |
4/3 |
5/3 |
6/3 |
6/3 |
|
Heating power (kw) |
11.4 |
19.5 |
30 |
40 |
70 |
|
Max. output (kg/h) |
45 |
140 |
240 |
380 |
500 |
|
Dia. of core (mm) |
15 |
30 |
50 |
60 |
80 |
|
Insulative thickness (mm) |
0.3~3 |
0.5~5 |
0.5~5 |
0.5~5 |
0.5~5 |
|
Outlet speed (m/min) |
10~110 |
10~80 |
10~80 |
6~80 |
5~40 |
